Introduction:

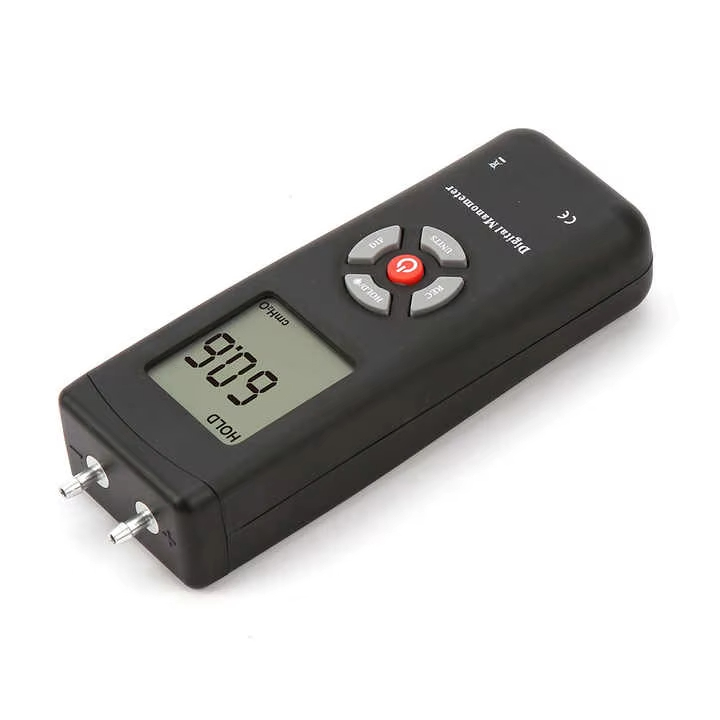

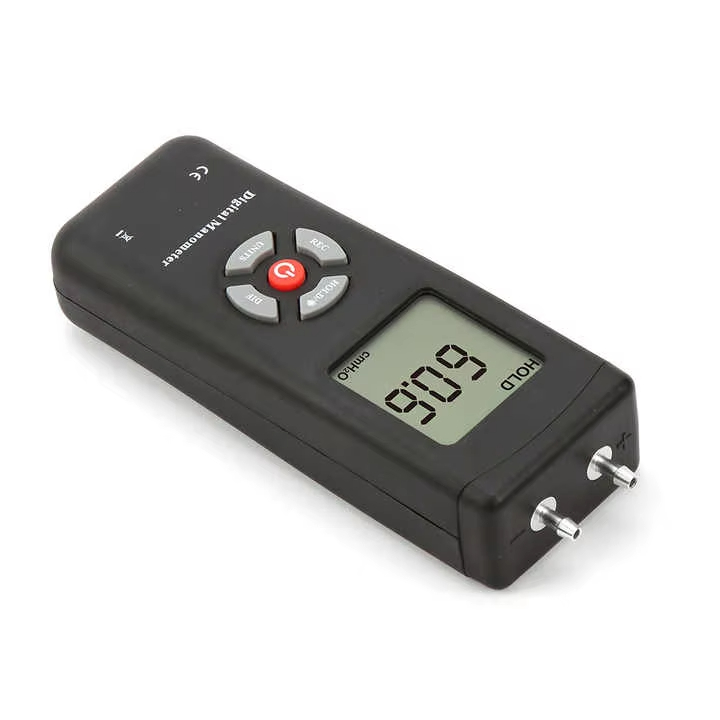

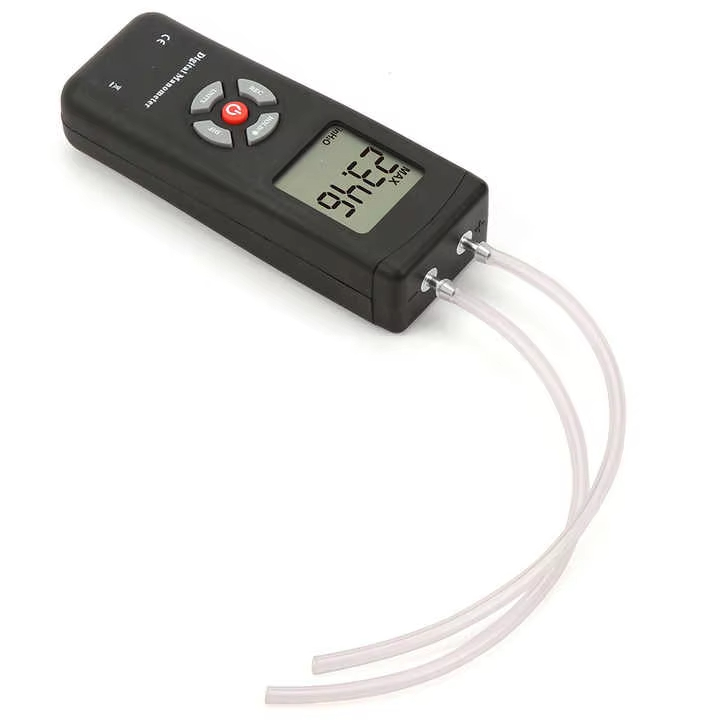

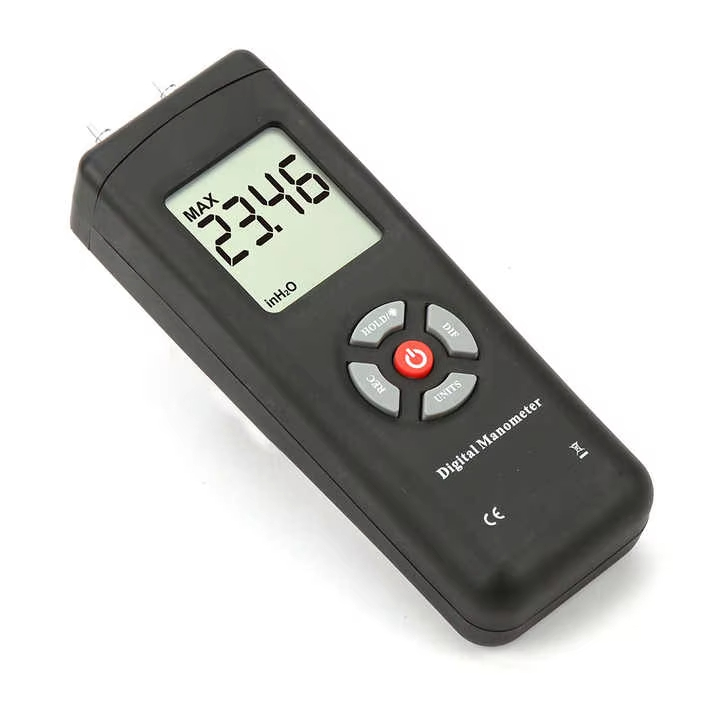

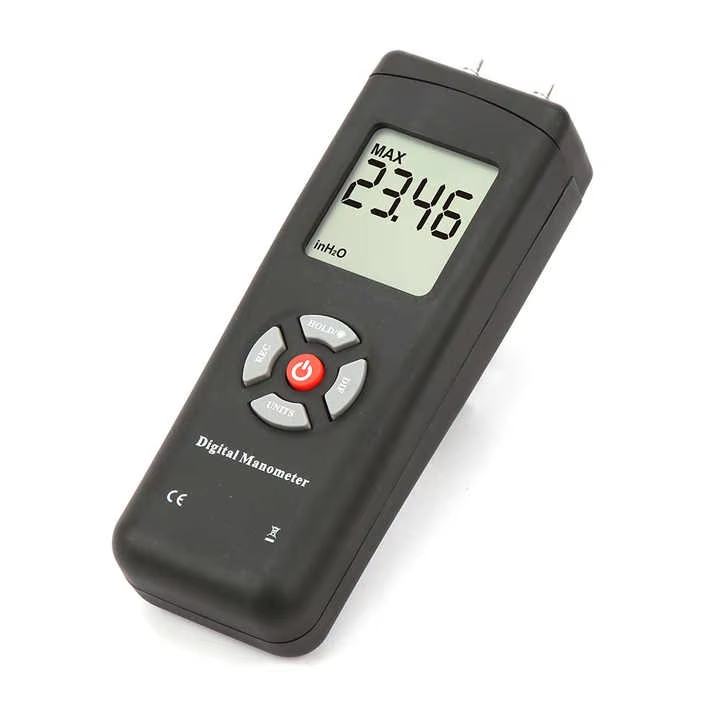

The device measures Gauge/Differential Pressure from -55H2O to +55H2O (+2 psi).
It features 11 selectable units of measure:In H2O,psi,mbar,Kpa,InHg,mmHg,ozin²,FtH2O,cmH2O,kgcm.
Additional features include Data Hold and Auto Power Off disabled.Careful use of this meter will
provides years of reliable serive.
This manometer suitable for measuring ventilation and air conditioning systems and on-site verification,and troubleshooting clean
room, or any gas pressure of the system, easy to operate and clear reading forHVAC technicians, operation and maintenance
engineers and scientific researchers test an indispensable tool.

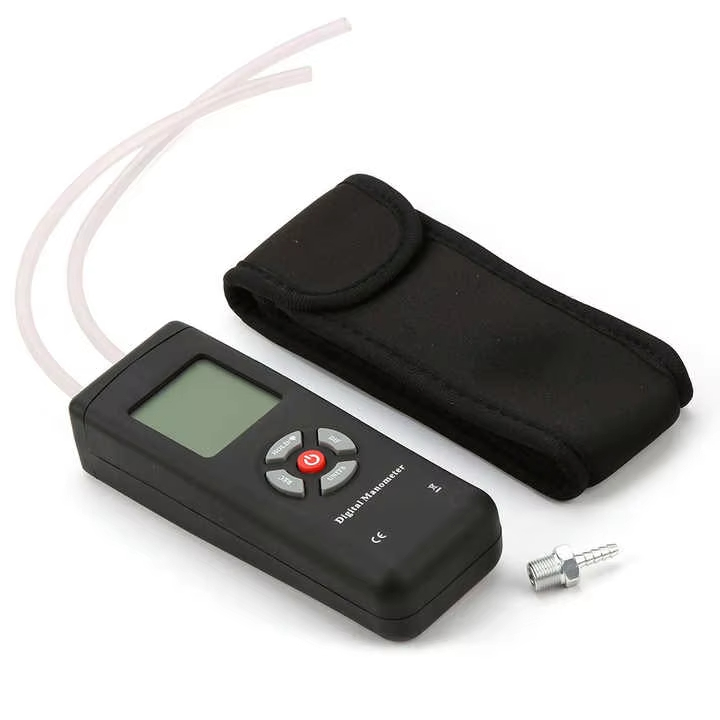

Package include(All packed in safe retail box):
1 x meter diagram
1 x pouch
1 x metal accessory
4 X tube
1 x User Manual (in english)
1 x 9V battery
Features:
1.Max / / average, and with a relative time
2.Large LCD backlit dual display
3.Zeroing, offset, and data compensation
4.Low battery display and automatic shutdown
5.Data Hold and Error code
6.9Vbattery
7.Client can calibrate the meter by oneself
Specifications:
1.Pressure Range:+10psi
2.Accuracy:+0.3% FSO (at 25oC)
3.Repeatability: +0.2% (Max+0.5%FSO)
4.Linearity/Hysteresis:+0.29% FSO
5.Response Time:0.5Seconds Typical
6.Over Range Indicator:Hi
7.Under Range Indicator:Lo
8.Operating Conditions:0 to 50oC(32 to 122oF)
9.Storage Conditions:-10 to 60oC (14 to 140oF)
10.11 Selectable units of Measure
11.Max / / average, and with a relative time
12.Large LCD backlit dual display
13.Zeroing, offset, and data compensation
14.Low battery display and automatic shutdown
15.Data Hold and Error code
16.9Vbattery
17.Client can calibrate the meter by oneself |
