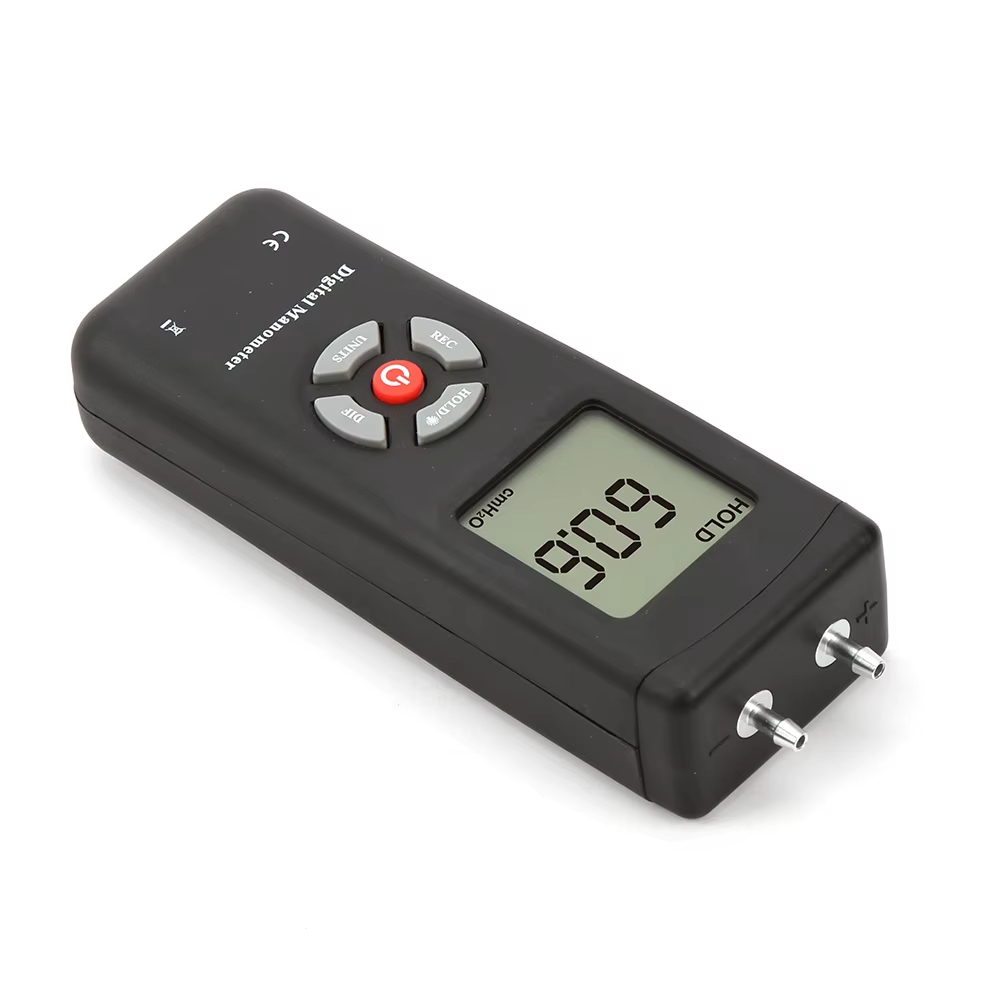

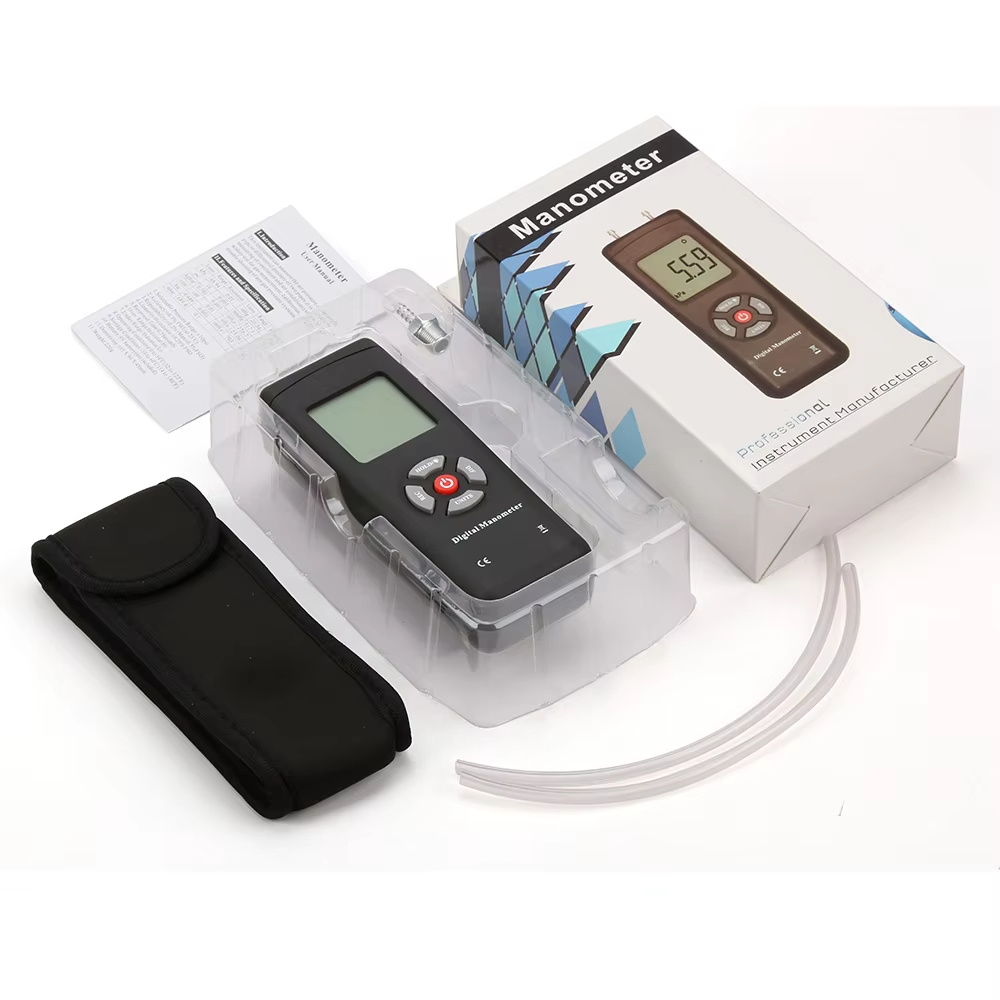

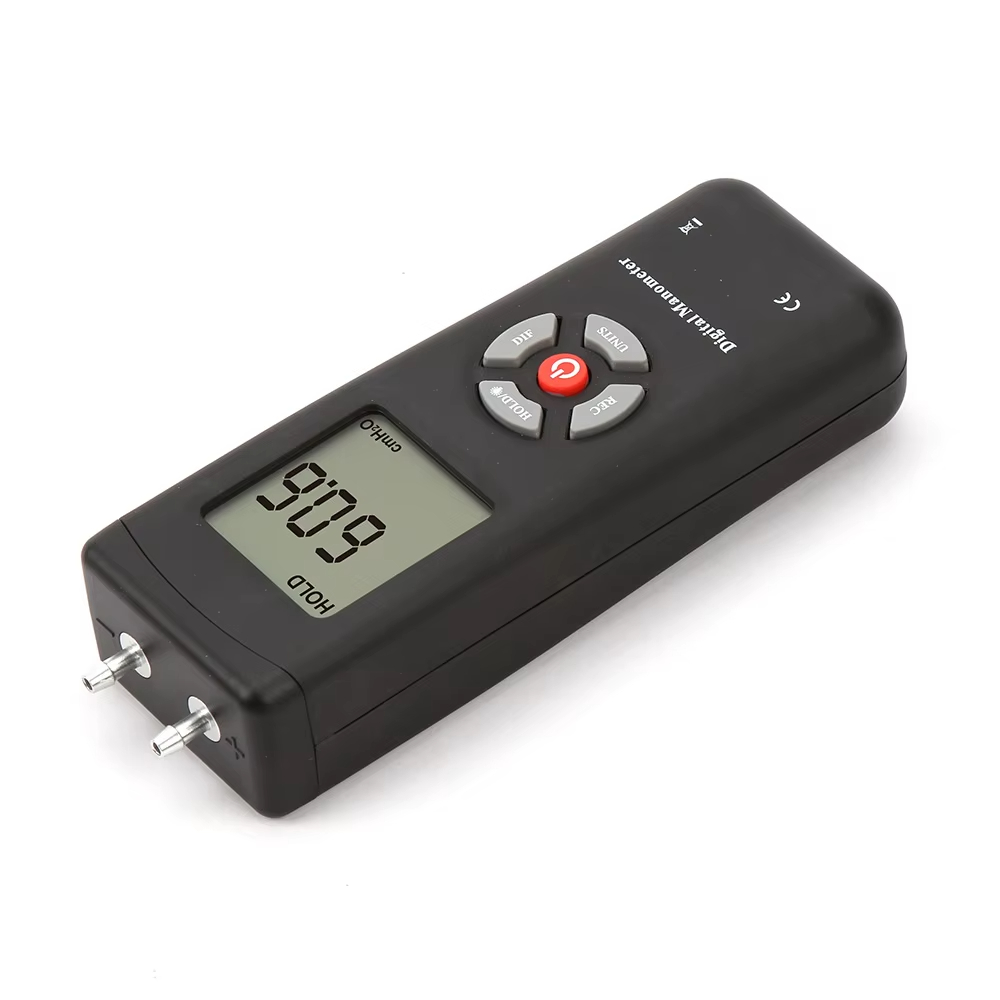

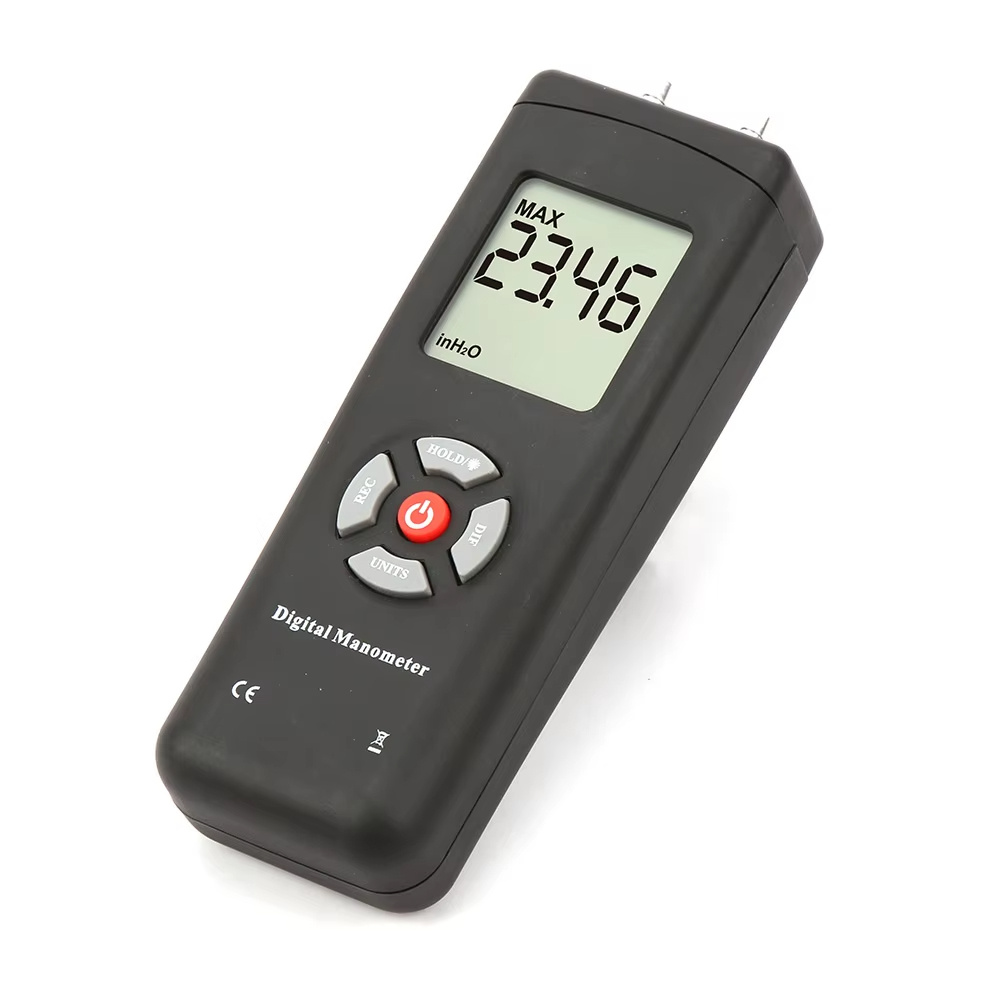

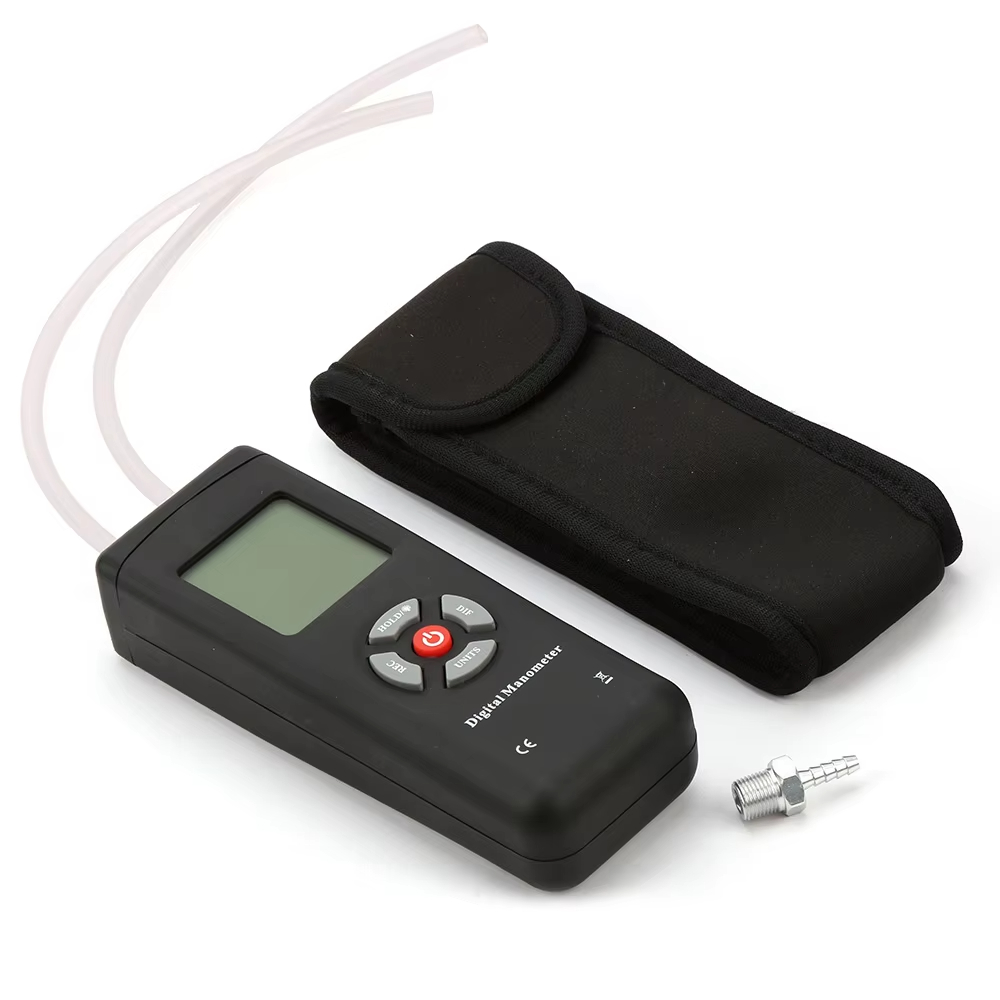

(TL-101) Digital manometer measures gauge/differential pressure from -55H2O to +55H2O(2 psi)
It features 11 selectable units of measure: in H2O, pis, bar,mbar,Kpa,inHg,mmHg,ozin2,ftH2O,kgcm,
additional features include data hold and auto power off disabled,careful use of this meter will provide years of reliable service.
Features:
1.Max / / average, and with a relative time
2.Large LCD backlit dual display
3.Zeroing, offset, and data compensation
4.Low battery display and automatic shutdown
5.Data Hold and Error code
6.9Vbattery
7.Client can calibrate the meter by oneself
Specifications:
1.Pressure Range:+/-5psi(TL-102)
2.Accuracy:+0.3% FSO (at 25oC)
3.Repeatability: +0.2% (Max+0.5%FSO)
4.Linearity/Hysteresis:+0.29% FSO
5.Response Time:0.5Seconds Typical
6.Over Range Indicator:Hi
7.Under Range Indicator:Lo
8.Operating Conditions:0 to 50oC(32 to 122oF)
9.Storage Conditions:-10 to 60oC (14 to 140oF)
10.11 Selectable units of Measure
11.Max / / average, and with a relative time
12.Large LCD backlit dual display
13.Zeroing, offset, and data compensation
14.Low battery display and automatic shutdown
15.Data Hold and Error code
16.9Vbattery
17.Client can calibrate the meter by oneself
Application:
1,HVAC/R refrigeration air-conditioning industry
2, Medical facilities
3. Measure negative and positive pressure
6, Computer peripheral equipment pneumatic control
7, Experimental and teaching use, understand the different environment of air pressure and differential pressure....
8, Differential pressure power generation, in order to effectively use all kinds of natural energy or wasted energy.
